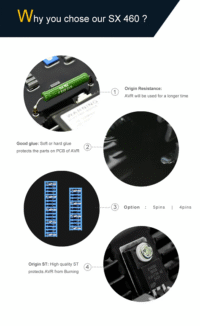

Generator Automatic Voltage Regulator Stamford AVR SX460
| Sensing/Power Input | |
| Voltage | 120 (95–132 Vac), 240 (190–264 Vac), 1 phase 2 wire jumper selectable |
| Frequency | 50/60 Hz jumper selectable |
| Output | |
| Voltage | Max. 90 Vdc at 207 Vac input |
| Current | Continuous 4A, Intermittent 6A for 10 seconds, Res 15 ohms min |
